How To Avoid Work Hardening Stainless Steel Tube?
You are here: Home » Blog » How To Avoid Work Hardening Stainless Steel Tube?

How To Avoid Work Hardening Stainless Steel Tube?

Views: 0     Author: Site Editor     Publish Time: 2026-05-24      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

Work hardening often feels like a mysterious material failure. In reality, it is a predictable and preventable thermal-mechanical reaction. When processing a stainless steel tube, scrapped parts and shattered tooling create massive production bottlenecks. Inconsistent machining parameters frequently lead to localized surface hardening. You lose unpredictable amounts of tool life. Production schedules face severe delays. Part integrity ultimately becomes compromised. Avoiding this outcome requires a fundamental shift in your machining approach. You must discard conventional "light and slow" machining myths completely. Instead, success relies on adopting aggressive feed rates. You need specific, optimized toolpaths to control friction. Precise thermal management is also non-negotiable. This guide will show you exactly how to bypass the glazing phase, stabilize your cycle times, and keep your cutting tools intact.

Key Takeaways

  • The Root Cause: Austenitic stainless steels transform from a Face-Centered Cubic (FCC) crystal structure to hard martensite when subjected to friction and heat.

  • The Golden Rule: "Make a chip, not a polish." Light cuts and dwelling are the primary triggers for surface glazing.

  • The Critical Triangle: Success relies on balancing low speeds, heavy feed pressures, and high-concentration (8-10%) flood coolant.

  • Recovery is Possible: Hardened layers are typically only 0.1–0.2 mm deep; specific mechanical and thermal techniques can bypass or reset this layer without scrapping the part.

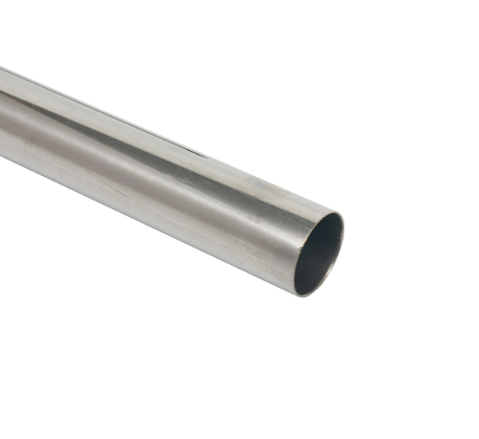

Stainless Steel Tube.png

The Metallurgy of Work Hardening in Stainless Steel Tube

Understanding metal behavior gives you a massive advantage on the shop floor. You cannot treat all ferrous metals identically. Different alloy groups react to mechanical stress in radically different ways. If you do not understand the underlying metallurgy, you will constantly fight your materials.

Material Identification and Vulnerability

Not all stainless alloys react the same way under a cutting tool. Ferritic alloys like 430 and martensitic alloys like 410 rarely work harden. They machine quite predictably. Austenitic grades like 304 and 316 act very differently. Duplex alloys used in typical tube manufacturing are also highly susceptible. They contain high levels of nickel, chromium, and manganese. These elements increase toughness but drastically increase vulnerability to surface glazing.

Alloy Family

Common Grades

Work Hardening Risk

Ferritic

430

Low

Martensitic

410, 420

Low to Moderate

Austenitic

304, 316

Extremely High

Duplex

2205

High

The Phase Shift Mechanism

You need to understand why this physical change occurs. Metallurgists call this "machining-induced martensite." Austenitic stainless steel has a Face-Centered Cubic (FCC) crystal structure. This structure is naturally tough and ductile. When you introduce extreme friction and heat, this crystal lattice collapses. It transforms into a much harder martensite structure instantly.

You can identify this phase shift visually and physically. The affected surface becomes shiny and heavily glazed. It feels extremely slick to the touch. You might also notice a strange magnetic effect. Localized areas of the previously non-magnetic material will suddenly become slightly magnetic. This serves as undeniable proof of the martensitic phase shift.

The Thermal Conductivity Problem

Stainless steel possesses notoriously poor thermal conductivity. When you machine carbon steel, the chips carry away most of the heat. Stainless steel refuses to do this efficiently. It forces heat directly into the workpiece. It also forces heat into your cutting tool. The heat cannot evacuate through the chip quickly enough. This thermal trap accelerates the phase shift and ruins your cutting edges.

The "Critical Triangle": Parameters for Consistent Processing

Standardizing your machining parameters solves numerous production headaches. It drastically reduces tool consumption across your entire facility. It also stabilizes cycle times regardless of which operator runs the machine. We call this parameter setup the "Critical Triangle."

Drill and Spindle Speed (Go Slow)

Many machinists hold onto a dangerous, counter-intuitive myth. They believe reducing feed rates will save the tool. In reality, light feeds destroy tools on stainless steel. You must drop your Surface Feet per Minute (SFM) aggressively. Depending on your machine's rigidity, you should target 60 to 120 SFM. This deliberate speed reduction prevents frictional heat buildup from occurring in the first place.

Feed Pressure (Heavy and Unrelenting)

You must adopt the "Make a chip, not a polish" doctrine immediately. You cannot allow the cutting edge to rub against the material. The tool must stay beneath the 0.1 to 0.2 mm hardened layer constantly. If you hesitate, the material will harden. When using manual feeds, you must apply heavy, unrelenting pressure. Your force must cause the tool to bite continuously without any pausing.

Heat Management (Lubrication and Coolant)

Low-speed operations still generate intense localized heat. You must use flood coolant to carry away this dangerous thermal energy. Do not rely on mist systems for aggressive drilling. We recommend increasing your water-based coolant concentration significantly. Push your mixture up to 8% or 10%. This high concentration provides the essential lubricity needed to prevent material galling.

Parameter

Target Range / Action

Desired Effect

Spindle Speed (SFM)

60 - 120 SFM

Minimizes frictional heat generation.

Feed Pressure

Heavy / Continuous

Forces tool beneath the 0.2 mm hardened layer.

Coolant Concentration

8% - 10% (Flood)

Flushes heat and provides anti-galling lubricity.

Tooling Selection and Advanced Toolpath Strategies

Choosing the correct tooling prevents excessive friction before the spindle even turns. Standard high-speed steel tools will fail rapidly. You must select geometry and materials specifically engineered for tough alloys.

Evaluation Criteria for Tooling

You need to audit your current tool crib inventory carefully. Throwing cheap drills at austenitic alloys only multiplies your scrap rate.

  • Bit Geometry: Mandate the use of 135-degree split-point self-centering drills. This specific geometry minimizes thrust requirements. It also prevents the drill tip from wandering and rubbing before breaking the surface.

  • Material and Coating: Specify Cobalt (HSS-Co) or high-quality Carbide tooling. You must use coatings designed specifically for ferrous metals. Titanium Aluminum Nitride (TiAlN) is excellent. These coatings create a crucial thermal barrier between the tool and the workpiece.

  • Milling Tools: Recommend variable pitch or variable flute end mills. Standard end mills create harmonic resonance. This resonance induces micro-bouncing during the cut. Micro-bouncing causes friction, which immediately hardens the surface. Variable pitch geometry disrupts this chatter entirely.

Toolpath Execution

Tooling only accounts for half of the machining equation. Your programmed toolpaths dictate how the cutting edge enters and exits the metal.

Climb milling is completely non-negotiable for these alloys. When you climb mill, the chip starts thick and thins out as the cutter exits. This action transfers heat away efficiently. Conventional milling does the exact opposite. It starts at zero thickness. This forces the tool to rub forcefully before it finally cuts. That rubbing guarantees severe surface glazing.

For slotting operations, you must advocate for Trochoidal Milling. Traditional full-width slotting creates massive heat traps. Trochoidal toolpaths use High-Performance Cutting (HPC) strategies instead. You program very light radial engagements, typically 0.015 to 0.020 inches. You then pair this light engagement with extremely high feed rates. The cutter constantly moves in and out of the material. This allows the tool and the part to cool between precise engagements.

Standard Operating Procedures to Prevent Surface Glazing

Even perfect tools will fail if operator habits remain poor. You must implement strict Standard Operating Procedures (SOPs) across your facility. These rules mitigate risks and prevent operator-induced glazing.

Implementation Realities and Risk Mitigation

Machine shops often suffer from inherited bad habits. You must actively train these habits out of your workforce.

  1. Never Dwell: A rotating tool resting against the material instantly glazes the surface. Even a one-second pause generates enough friction to trigger the phase shift. You must retract the tool immediately once the cut finishes.

  2. Ban "Spring Passes": Operators love zero-depth finishing passes. They believe these passes clean up dimensional inaccuracies. In reality, spring passes rely entirely on tool deflection. They result in pure friction rather than shearing. Every single pass must have a deliberate depth of cut exceeding 0.1 mm.

  3. Strict Peck Drilling Rules: Peck drilling should be avoided if possible. If it is unavoidable in deep sections, you must follow strict retraction rules. You must retract the drill out at least one full tool diameter. This clears chips effectively and allows cold coolant to flood the hole. Micro-pecking is disastrous because it causes constant rubbing at the hole bottom.

  4. Tool Wear Management: Dull tools rub the metal. Sharp tools shear it cleanly. You must establish strict tool-change intervals based on part counts. Never run inserts until they fail completely. Many machinists blame tap breakages on faulty taps. Usually, a glazed bottom hole actually breaks the tap. Managing drill wear prevents tap failures down the line.

Diagnosis and Recovery Tactics (When the Damage is Done)

Despite your best efforts, mistakes will occasionally happen. An operator might pause a manual feed, or a drill might dull prematurely. You need reliable methods to diagnose the damage quickly. You also need proven tactics to recover the part without scrapping it.

Verification (The File and Punch Test)

You cannot rely on visual discoloration alone. Blue or yellow heat marks indicate excessive temperatures, but they do not guarantee hardening. You must perform a mechanical test.

Use a standard center punch or a machinist's file. Strike the suspect area firmly with the center punch. If the tip of the punch flattens upon impact, the part is work-hardened. Alternatively, drag a file across the surface. If the file skates across the metal without biting into it, you have a hardened layer. Do not attempt standard machining once you confirm this state.

Mechanical Brute-Force Recovery

You can bypass the hardened zone using physical force. The martensite layer is usually very thin.

First, consider reverse drilling. Often, the glazed layer sits at the bottom of a blind hole. If your part is symmetrical, simply flip it over. You can drill from the back side to meet the original hole. Once your drill reaches the back of the hardened cap, it will break away easily.

Second, utilize the end-mill punch-through technique. Remove your ruined drill bit. Chuck up a center-cutting carbide end mill instead. Use this end mill to rigidly mill straight down through the hardened floor. A carbide end mill possesses the structural rigidity to crush through the martensite without deflecting. Once you clear the 0.2 mm glazed zone, you can resume normal drilling.

Thermal Recovery (Annealing)

If mechanical recovery fails, you can reset the crystal structure thermally. This requires high-temperature annealing. You must heat the component to a range of 1850 to 2050 degrees Fahrenheit. The metal must glow a bright orange color. After reaching this temperature, you must perform a rapid quench.

We must add a strong skepticism note here. This method presents severe risks. Heating thin metals to 2000 degrees causes massive warping. Dimensional distortion is almost guaranteed in precision components. For example, applying this heat treatment to a thin-walled stainless steel tub will completely warp its geometry. Only use thermal recovery as an absolute last resort on thick, non-critical profiles.

Conclusion

Conquering difficult alloys requires extreme discipline. You must maintain an unwavering commitment to heavy feed rates. You must utilize sharp, application-specific tooling. You also must prioritize massive heat extraction through flood coolant. Slipping on any of these three pillars guarantees surface glazing and broken tools.

Engineering teams should take immediate action. First, audit your current CAM toolpaths immediately. Eliminate all instances of dwelling and conventional milling. Replace full-width slotting with trochoidal strategies. Second, standardize your coolant concentrations at 8% to 10% across the entire shop floor. Finally, enforce strict tool-wear policies to prevent dull cutting edges from touching the material. These proactive steps ensure predictable yields and eliminate unnecessary shop floor frustration.

FAQ

Q: Why does 17-4 PH stainless steel machine differently than 304?

A: Precipitation-hardening alloys behave counter-intuitively. In its annealed state, 17-4 PH is very gummy. It tears easily and is highly prone to rapid work hardening. However, once heat-treated and hardened, 17-4 actually chips cleanly. It machines much more like high-carbon steel, provided your machine has adequate structural rigidity.

Q: How thick is the work-hardened layer on stainless steel?

A: The hardened layer is typically very shallow. It usually ranges from just 0.1 mm to 0.2 mm in depth. This shallow depth explains why a heavy, decisive cut can easily get under the martensite layer and continue shearing soft material.

Q: Can you fix a work-hardened piece by letting it cool down?

A: No. Work hardening is a permanent microstructural change. The metal's lattice has transformed from austenite to martensite. It is not a temporary temperature issue. You must either physically cut the hardened layer away or thermally reset it via high-heat annealing.
