A poorly matched antenna chokes even the most advanced radio equipment. It acts as the literal bottleneck for signal fidelity and device performance. If you ignore this vital component, transmission range and audio clarity suffer instantly. Buyers often face a very specific dilemma. You might be replacing a broken OEM part on legacy gear. You could be upgrading a commercial communication fleet. Or, you might be sourcing reliable components for new hardware manufacturing. Regardless of your situation, making the right choice requires clear criteria. This article provides an evidence-based framework for evaluating mechanical durability, electrical matching, and vendor reliability. We skip the marketing fluff. Instead, we focus on what makes a telescopic antenna survive heavy field use while delivering optimal RF performance. You will learn how to match lengths to frequencies. You will compare core materials and understand base mechanics. Finally, you will select the exact right vendor for your specific operational use case.
Before purchasing hardware, you must define exactly how your equipment operates in the real world. Antenna selection begins by outlining strict operational boundaries. We categorize these boundaries into three specific areas.
The base material determines both electrical conductivity and mechanical survivability. Manufacturers primarily use two metals for these components. Selecting the right metal prevents premature snapping and signal degradation.
Material Comparison Chart
| Material Type | Primary Advantage | Notable Weakness | Best Use Case |
|---|---|---|---|
| Standard Brass | Excellent conductivity | Bends easily under stress | Consumer electronics, indoor receivers |
| Stainless Steel | Superior durability | Requires advanced machining | Marine, heavy-duty commercial |
| Custom Alloys | Precise structural matching | Longer lead times | Proprietary OEM hardware |
Brass remains the traditional choice for most consumer electronics. It offers excellent electrical conductivity. Manufacturers plate the brass exterior using chrome or nickel. This plating provides basic oxidation resistance and a polished finish. Brass is highly cost-effective for mass production.
However, brass introduces specific risks. It is a relatively soft metal. Under sudden mechanical stress, standard brass tubes bend or snap entirely. If you drop a portable radio, a fully extended brass antenna usually suffers permanent deformation. We recommend brass exclusively for indoor devices or controlled environments.

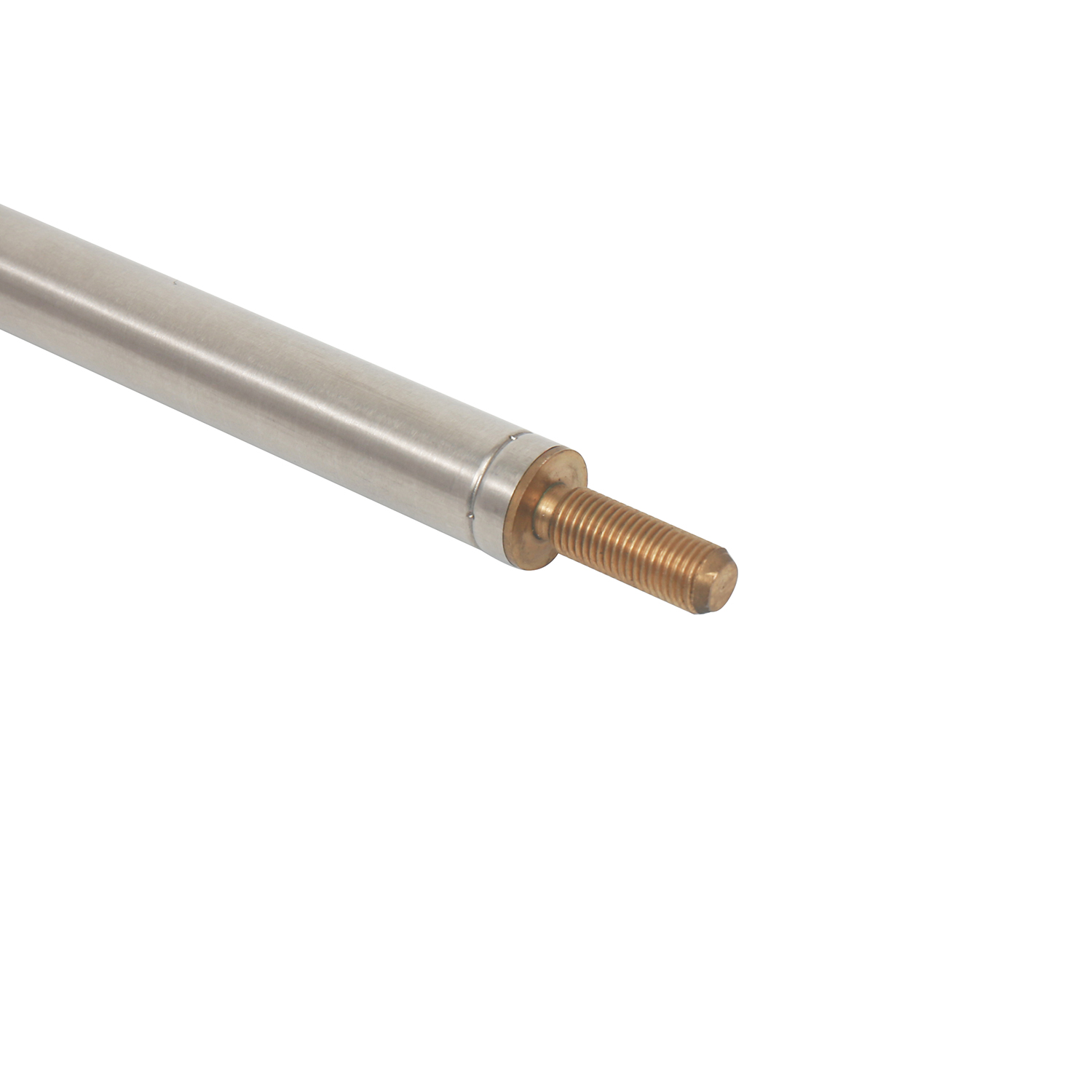

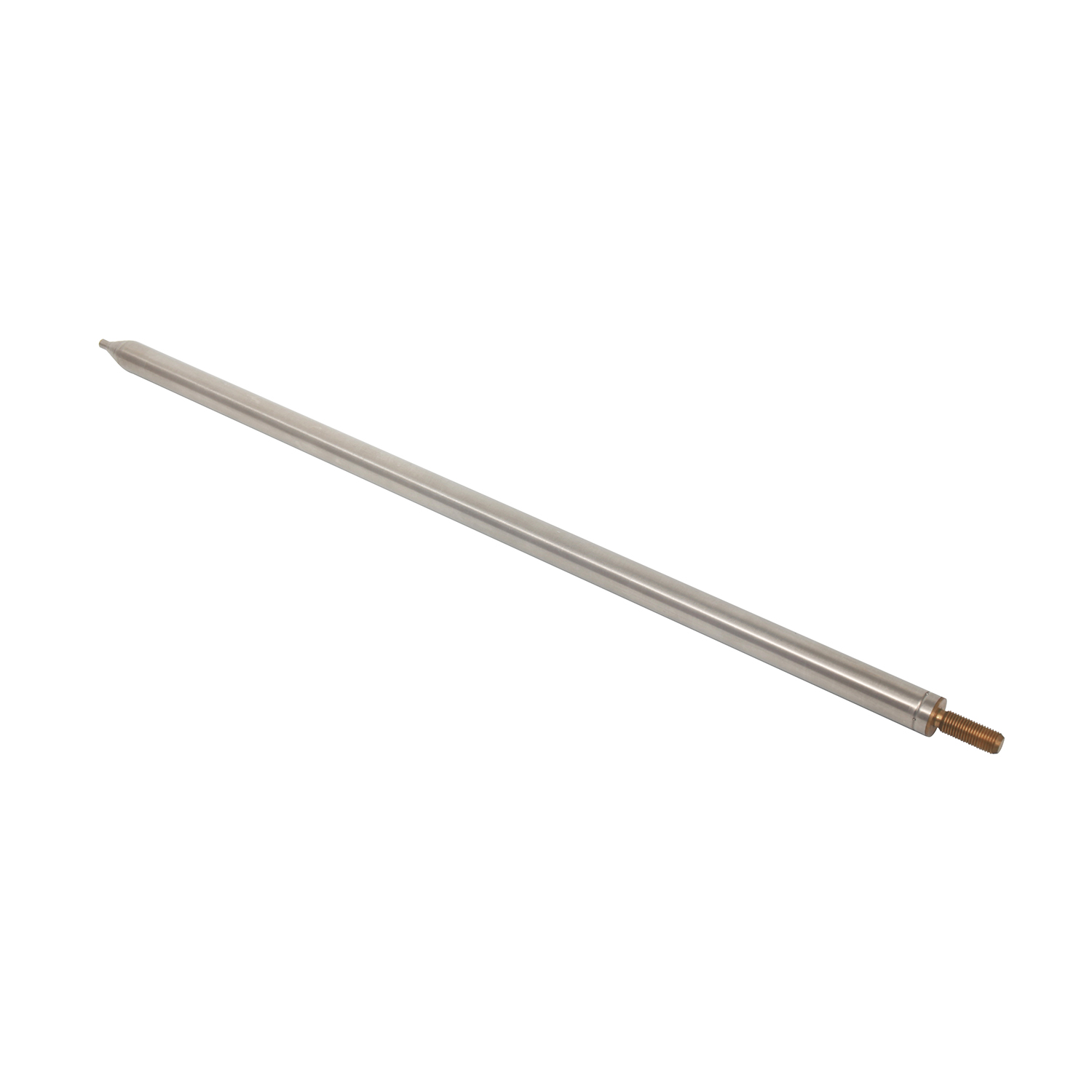

When field conditions turn harsh, professionals switch to stainless steel. A stainless steel radio antenna delivers superior durability. It boasts incredible tensile strength and resists snapping under high wind loads. Stainless steel also provides exceptional natural resistance to rust and oxidation. This makes it ideal for marine applications or outdoor utility fleets.
Stainless steel does carry minor drawbacks. It weighs slightly more than standard brass. Furthermore, it requires high-quality machining at the telescopic joints. Poorly machined stainless steel creates stiff, gritty friction when extending the sections. Always verify the manufacturer uses precision drawing techniques for their steel tubing.
Off-the-shelf components frequently fail to meet specialized requirements. In these instances, you should specify custom fabrication. A custom whip antenna solves unique engineering challenges. OEM manufacturers often require non-standard frequency bands. They might need a specific number of telescopic sections to fit a proprietary chassis design. Custom solutions also allow you to design proprietary mounting bases. This prevents unauthorized third-party replacements in closed hardware ecosystems.
You must evaluate every telescopic antenna across two distinct dimensions. Electrical specifications dictate signal quality. Mechanical specifications determine how long the product survives in the user's hands.
Frequency Range & Resonance
An antenna captures radio waves efficiently only when its physical length matches the target wavelength. You must verify the extended length mathematically aligns with your desired frequency band. VHF, UHF, and HF bands require drastically different extended lengths. A standard quarter-wave VHF antenna extends much further than a quarter-wave UHF equivalent. Do not guess these dimensions. Use standard wavelength formulas to confirm resonance.
Impedance Matching
Your antenna must electrically match the internal circuitry of your radio. Most commercial communication systems standardize on 50-ohm impedance. Consumer broadcast receivers often use 75-ohm impedance. If you attach a 75-ohm antenna to a 50-ohm transmitter, you create an impedance mismatch. This mismatch causes immediate signal reflection and drastically reduces your transmission power.
Connector Types
Standardize your connection points whenever possible. Common connectors include SMA, BNC, F-Type, or simple threaded screw mounts. Evaluate your device chassis carefully. Assess if you will need external adapters. Adapters introduce unwanted insertion loss. Every connector junction slightly weakens your RF signal. Choose an antenna featuring a native connector base matching your device perfectly.
Base Articulation
The swivel or knuckle joint absorbs the most daily abuse. Evaluate this articulation point rigorously. Look for tension-adjustable screws. Adjustable screws allow users to tighten the hinge as it naturally loosens over time. Conversely, avoid cheap fixed-friction hinges. Fixed hinges rely solely on initial manufacturing tightness. They inevitably wear out, leaving the antenna flopping downward under its own weight.
Section Tolerance
Assess the friction fit between the individual telescopic tubes. High-quality manufacturing produces smooth, consistent resistance during extension. Loose sections are disastrous. A loose joint breaks continuous electrical contact. This introduces severe electrical noise, static, and sudden signal dropouts during movement.
Even perfectly specified hardware fails if users handle it incorrectly or install it poorly. Anticipating these implementation risks saves you from costly equipment downtime.
The Hinge-Failure Trap
The most common point of failure is the base hinge. Users constantly extend, tilt, and collapse these devices daily. Constant movement degrades the metal-on-metal contact within the hinge. You must address proper handling techniques. A common mistake involves pulling the antenna outward by yanking the thinnest top tip. This warps the delicate upper tubes. Instead, instruct users to pull from the thickest base section. Pushing and pulling from the bottom section protects the fragile upper segments.
Retrofitting Older Equipment
Updating vintage electronics introduces unique headaches. Older radios utilize obsolete proprietary connectors. You will likely face physical clearance issues. Modern replacement bases might be too wide to fit inside vintage recessed chassis slots. Detail these challenges before purchasing. You often face adapter stacking. Combining multiple adapters to convert an old proprietary thread into a modern SMA connector looks clumsy. More importantly, adapter stacking acts as a weak lever, snapping easily if bumped.
Performance Trade-offs
Be entirely transparent regarding performance limitations. A highly segmented telescopic antenna introduces slight electrical resistance at every single mechanical joint. Compare this to a solid wire or a fixed fiberglass whip. A solid piece of metal offers uninterrupted conductivity. Telescopic designs sacrifice a small percentage of absolute signal purity in exchange for extreme portability. For ultra-fringe signal chasing, a solid whip outperforms a telescopic design. However, for everyday portable use, the convenience easily outweighs the marginal insertion loss.
Selecting a reliable manufacturing partner protects your production timelines. Do not buy blindly based on catalog images. Apply a strict vetting process to your supplier shortlist.
Datasheet Transparency
Professional suppliers provide exhaustive technical documentation. Reject suppliers failing to provide clear VSWR charts. You need exact section dimensions, not just "total length." Demand comprehensive material composition breakdowns. If a supplier cannot confirm the exact grade of their stainless steel radio antenna tubing, eliminate them from your list immediately.
Prototyping and Minimum Order Quantities (MOQs)
B2B buyers face strict procurement constraints. If you are sourcing a newly designed custom whip antenna, never commit to mass manufacturing MOQs blindly. Evaluate the supplier's willingness to provide low-volume prototypes first. You must test the physical prototype in your actual device housing. Testing prevents ordering ten thousand units featuring a base thread just one millimeter too wide.
Warranty and Defect Rates
Mass-produced mechanical components experience occasional failures. Factor in the supplier’s official replacement policy for mechanical defects. Ask specific questions. Will they replace batches exhibiting loose friction joints? How do they handle exterior plating flaking off after a month of use? A trustworthy vendor guarantees their joint tolerances and plating adherence in writing.
Choosing the correct equipment relies on a balanced decision matrix. You must balance strict frequency requirements alongside the physical realities of your operating environment. A rugged outdoor environment demands completely different materials than a stationary indoor laboratory.
We advise buyers to prioritize connector compatibility and base hinge durability. Do not obsess over superficial metrics like absolute maximum extended length if the base hinge cannot support the weight. A shorter, robustly mounted antenna outperforms a long, floppy one every time.
Take action today. Audit your current equipment specifications against the criteria outlined above. Check your frequency bands, evaluate your current connector wear, and define your environmental stressors. Use this data to confidently specify your next purchase.
A: No. It must be extended to the specific fraction of the wavelength matching the frequency being monitored. Over-extending past the resonant point can detune the antenna, dramatically degrading your signal reception and transmission efficiency.
A: Yes, provided the base connector (e.g., SMA or BNC) matches perfectly. Furthermore, your telescopic replacement must cover the identical frequency range as the original fixed whip to maintain safe impedance levels.
A: This happens due to capacitive coupling. Your human body acts as a secondary ground or antenna, temporarily altering the tuning. Additionally, worn telescopic joints can cause micro-arcing. Physical manipulation breaks and reconnects the circuit rapidly, generating audible static.
